Geonor is a leading supplier of various types of wing drills, which are a safe, accurate and well-established method for in situ measurement of undrained shear strength in soft clays. The wing-drill technology is so well established as a tool that the equipment has formed the basis for international geotechnical standards.

The largest international markets for wing drills are in regions where marine clay and quick clay are a challenge for the construction industry.

Geonor manufactures and supplies three types of wing drills; H-60 (0-3 meters), H-70 (0-10 meters +) and H-10 (0-30 meters +)

‍

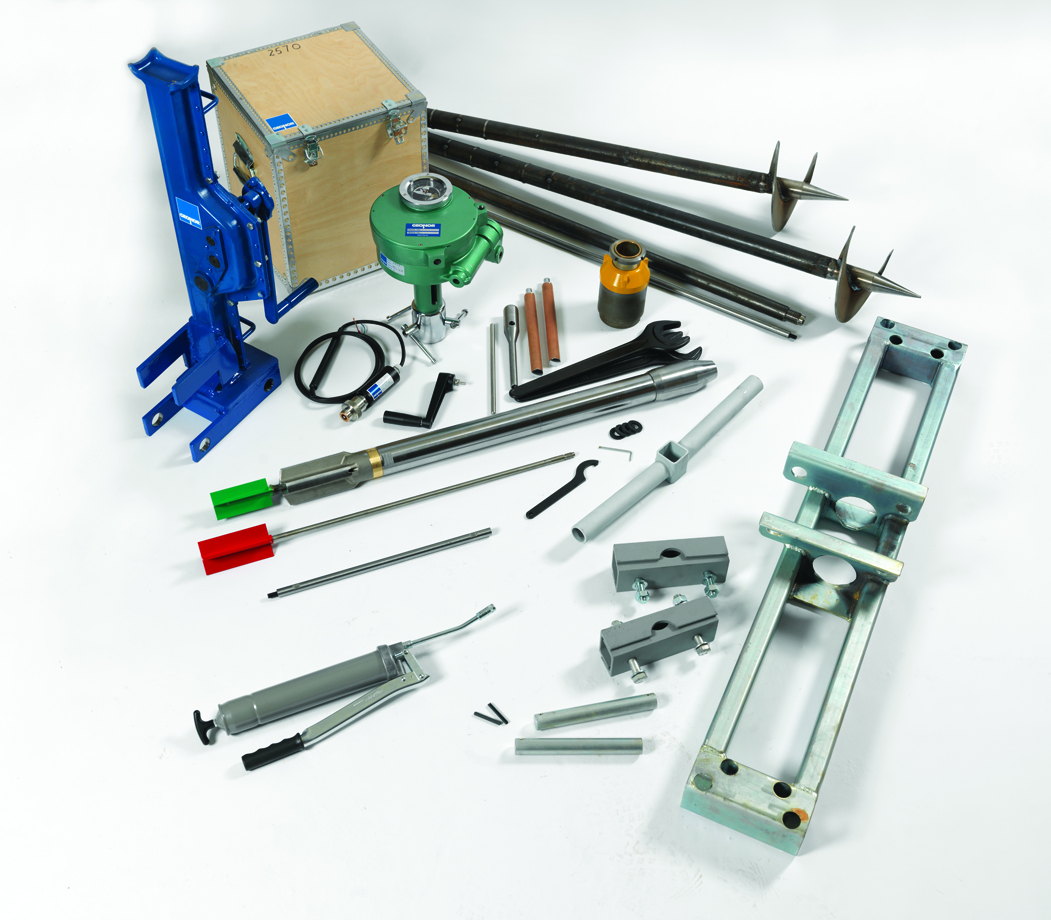

H-10 wing drill for 30 m depth

The wing drill can be used manually down to depths of 30 m or more. To ensure constant rotation speed of the wing, the wing drill instrument can be converted for electric operation. Can be extended with Ø36 x 1000 mm pipe and Ø16 x 1000 mm inner rods.

• Accurate values of undrained shear strength in situ
• For use in soft clays
• Two blade sizes - measuring ranges 0-60 kPa and 0-100 kPa
• Used both manually and with a drilling rig
• Satisfies the ASTM # standard.

‍

H-60 pocket wing drill for 3 m depth

Designed for easy assessment of undrained shear strength in soft to firm clays. Can be extended with 0.5 m rods.

• Quick and easy to use
• Low weight approx. 3 kg
• Direct reading to a depth of 3 m
• Three blades - measuring range 0 to 200 kPa
• Supplied with calibration table

‍

H-70 inspection vane drill for 10 m depth

H-70 inspection wing drill, complete. Supplied in steel transport case. Intended for easy assessment of undrained shear strength in soft to medium soft clays.

Can be extended with Ø25 x 1000 mm rods. Hammer drill can be used for pre-drilling.

• Robust, easy to use, lightweight.
• Good evaluation of bar friction.
• Two blade sizes - Measurement range 0-80 kPa and 0-160 kPa.
• Direct pressing down to 10 m without pre-drilling.
